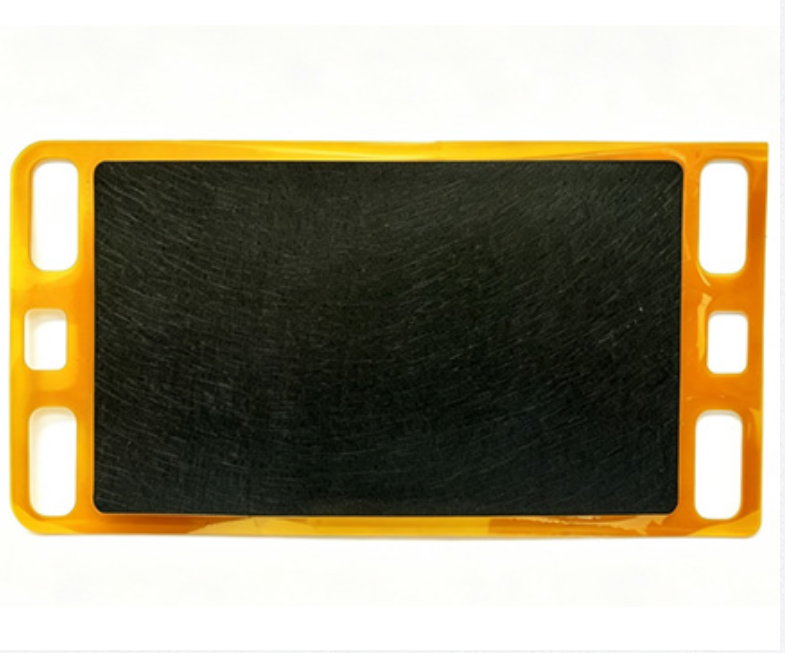

We developed the high-temperature membrane electrode assembly with our high-temperature proton exchange membranes and catalyst layer ionomers. Customization of 5-layer and 7-layer MEAs is available according to customer requirements, featuring high product consistency. The high-temperature MEA has been validated in high-temperature fuel cell stacks ranging from the hundred-watt to ten-kilowatt class.
advantages:
1. Our high-temperature membrane electrode assembly has polarization performance
2. Our high-temperature membrane electrode assembly has high product consistency
Technical Specifications(Reference Standard):
| Specification | 技术指标Value |
| 活性面积Active area(cm2) | 25、45、165 |
| 工作条件Operate condition | 140-160℃，RH=0% |
| 额定功率密度Rate power density | 0.28(±0.025)W/cm2 |
Applications:
high-temperature membrane electrode assembly is widely used in high-temperature fuel cell

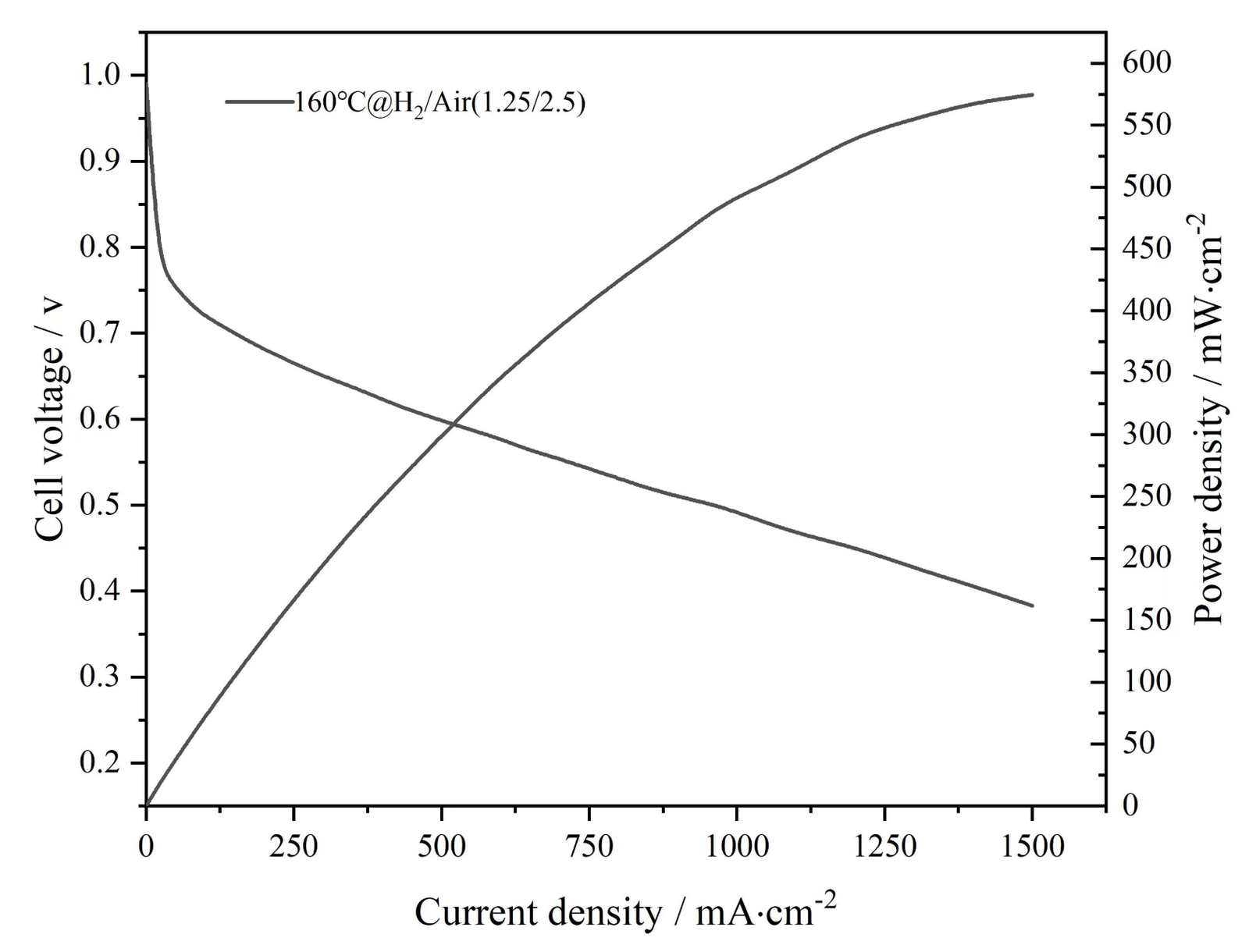

Index:
